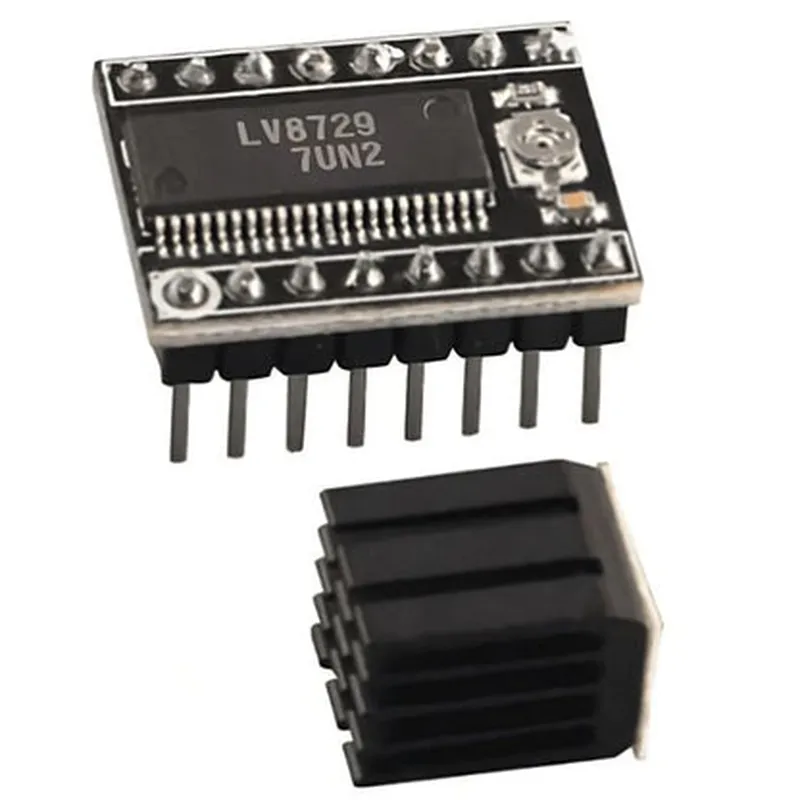

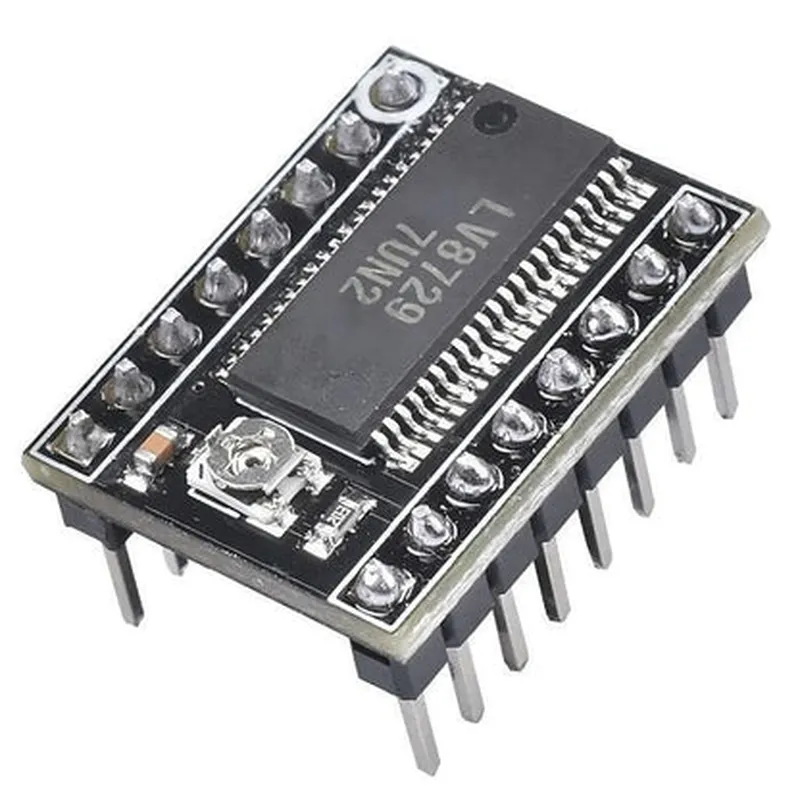

Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver with Heat Sink

Stufin

Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver with Heat Sink

This product is not available in your location yet

Description: 1. The Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver is a high-performance, microstepping motor driver designed for quiet operation in various IoT projects. 2. It features a compact size of 35mm x 36mm and a maximum current capability of 2.5A per phase, making it suitable for small to medium-sized stepper motors. 3. The 4-layer substrate design reduces power loss and improves overall efficiency, contributing to the driver's silent operation. 4. This driver supports both unipolar and bipolar stepper motor configurations, providing flexibility in its application. 5. It offers a wide operating voltage range of 12V to 36V, accommodating various power requirements within IoT projects. 6. The MKS-LV8729 comes with an integrated heat sink, which effectively dissipates heat generated during operation and ensures stable performance even under heavy loads. 7. It features onboard microstepping modes (1/16th, 1/32nd, and 1/64th) to provide precise motor control in various a

View Technical Documentation

Specification	Details
Motor Driver	LV8729 4-Phase High-Torque
Stepper Motor Type	Bipolar Quad coil
Input Voltage Range	8V - 45V (Peak DC)
Current Rating	Up to 3.2A per Phase
Step Angle	1.8° or 0.9° (software selectable)
Microstepping	16 Microsteps (software selectable)
Heat Sink	Integrated High-Performance
Temperature Range	-20°C to +85°C
Dimensions	L: 32.5mm W: 28.5mm H: 6.3mm
Weight	Approx. 50g
Certifications	CE FCC RoHS compliant
Operating Modes	Full Step Half Step Microstep
