L293D Motor Driver IC

This product is not available in your location yet

Description: 1. L293D is a six-channel, single power supply, full-bridge driver IC specifically designed for operating inductive loads like DC motors and relays. 2. Features: It offers two independent full-bridge motor driving circuits with current limiting and overload protection. Each channel has an enable input for controlling the motor operation independently. 3. Efficiency: The L293D IC operates efficiently as it allows the use of a single power supply for both the motor and logic supplies. It minimizes power losses by eliminating the need for separate power sources. 4. Versatility: Suitable for a wide range of applications, including robotic vehicles, industrial automation systems, model trains, CNC machines, and RC cars. It can be used to drive DC motors, relays, solenoids, or other inductive loads. 5. Control: The IC can be operated using simple logic levels (TTL or CMOS), making it easy for control by microcontrollers or digital circuits. Each motor channel has a separate enable input

View Technical Documentation

Specification	Details

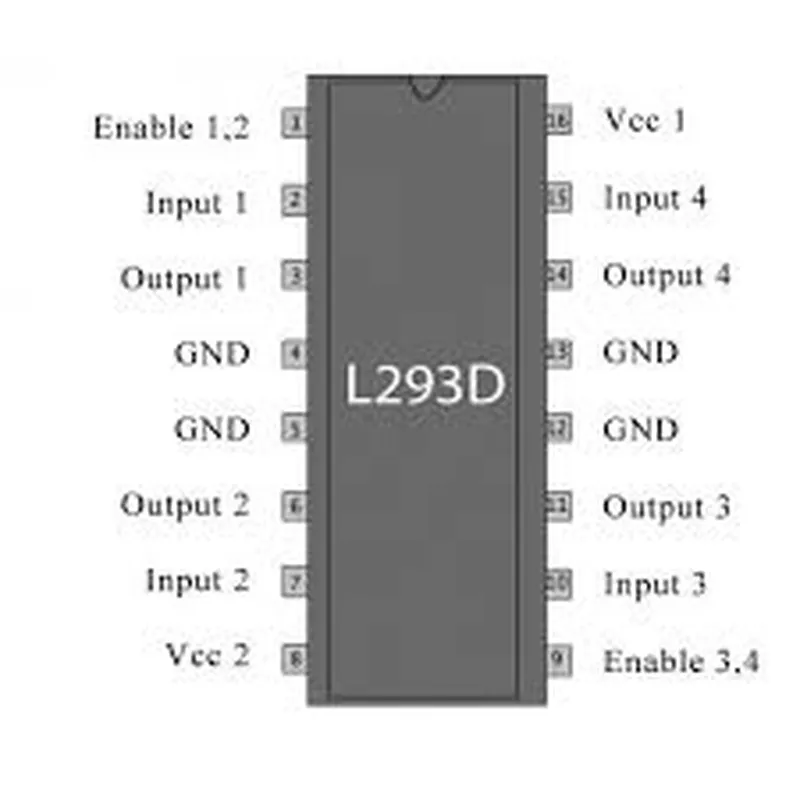

Pin Configuration	16-pin DIP package (8 inputs 2 outputs)
Output Current	Up to 600mA per output channel
Output Voltage	Up to 35V (absolute maximum rating)
Input Logic Level	TTL compatible (0-5V)
Power Supply	Operating voltage: 4.5-36V DC
Operating Temperature	-40°C to 85°C
Current Limiting	Built-in current limiting on output
Short-Circuit Protection	Internal short-circuit protection
